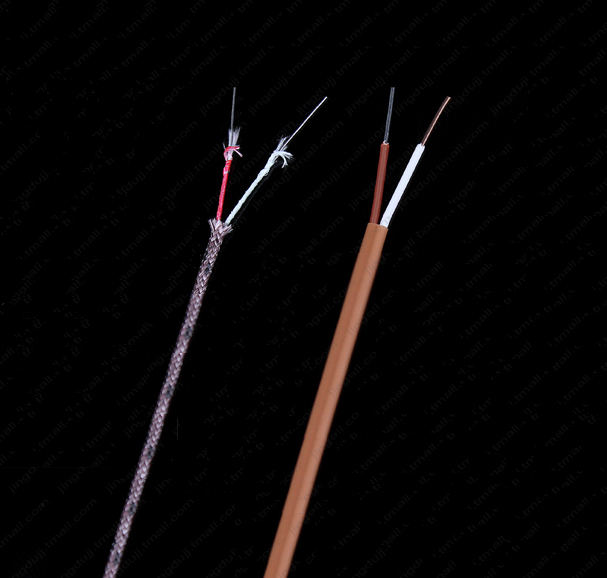

Thermocouple Wire Type J

Name: Thermocouple Wire Type J
SKU: SKU-00278
Availability: PreOrder

{{show_pdata.before_vat_price_text}} (ยังไม่รวม Vat)

0.00 บาท

ราคาปกติ บาท

จำนวนชิ้น	ส่วนลดต่อชิ้น	ราคาสุทธิต่อชิ้น
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}}	{{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท	{{number_format(price_row.price,2)}} บาท



{{ sub_option.name }}	- ไม่มีตัวเลือก -
คงเหลือ	ชิ้น
จำนวน (ชิ้น)	- +
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
หนังสือรับรองบริษัท บุ๊คแบ๊งค์ คุ้มครองโดย LnwPay

คุยกับร้านค้า	โทร 0870686820 Add 45121612
{{ size_chart_name }}
หมวดหมู่	Thermocouple wire & RTD Extension wire
สภาพ	สินค้าใหม่
เพิ่มเติม
สภาพ	สินค้ามือสอง
เกรด
สถานะสินค้า
ระยะเวลาจัดเตรียมสินค้า
เข้าร่วมโปรโมชั่น


Share :

รายละเอียดสินค้า
วิธีการสั่งซื้อ
สินค้าที่เกี่ยวข้อง

รายละเอียดสินค้า

ไฮไลท์

Thermocouple Wire Type J

ข้อมูล

น้ำหนัก

บาร์โค้ด

ลงสินค้า

อัพเดทล่าสุด

รายละเอียดสินค้า

Insulation	AWG No.	Model Number	Type Wire	Insulation		Max. Temp		Nominal Size	Wt.† lb/1000'
Insulation	AWG No.	Model Number	Type Wire	Conductor	Overall	°F	°C	Nominal Size	Wt.† lb/1000'
Ceramic*	14	XC-J-14	Solid	Nextel Ceramic	Nextel Ceramic	1100	590	.140 x .200	38
	20	XC-J-20	Solid	Nextel Ceramic	Nextel Ceramic	900	480	.135 x .190	16
	20	XT-J-20	Solid	Nextel Ceramic	Nextel Ceramic	900	480	.105 x .155	15
	20	XL-J-20	Solid	Nextel Ceramic	Nextel Ceramic	900	480	.095 x .135	14
	24	XC-J-24	Solid	Nextel Ceramic	Nextel Ceramic	700	370	.115 x .175	12
	24	XT-J-24	Solid	Nextel Ceramic	Nextel Ceramic	700	370	.088 x .132	11
	24	XL-J-24	Solid	Nextel Ceramic	Nextel Ceramic	700	370	.078 x .116	10
Silica*	14	XS-J-14	Solid	Silica	Silica	1100	590	.140 x .200	35
	20	XS-J-20	Solid	Silica	Silica	900	480	.105 x .155	12
	24	XS-J-24	Solid	Silica	Silica	700	370	.088 x .132	10
High Temp. Glass**	20	HH-J-20	Solid	High Temp. Glass	High Temp. Glass	900	480	.060 x .105	9
High Temp. Glass**	24	HH-J-24	Solid	High Temp. Glass	High Temp. Glass	700	370	.055 x .090	5
Glass	14	GG-J-14	Solid	Glass Braid	Glass Braid	900	482	.100 x .160	43
	20	GG-J-20	Solid	Glass Braid	Glass Braid	900	482	.060 x .095	9
	20	GG-J-20S	7 x 28	Glass Braid	Glass Braid	900	482	.060 x .100	9
	24	GG-J-24	Solid	Glass Braid	Glass Braid	700	370	.050 x .080	5
	24	GG-J-24S	7 x 32	Glass Braid	Glass Braid	700	370	.050 x .085	5
	28	GG-J-28	Solid	Glass Wrap	Glass Braid	700	370	.045 x .070	3
	30	GG-J-30	Solid	Glass Wrap	Glass Braid	600	320	.045 x .070	3
	36	GG-J-36	Solid	Glass Wrap	Glass Braid	600	320	.045 x .070	2
Glass with Stainless Steel Overbraid	20	GG-J-20-SB	Solid	Glass	SS Braid over Glass	900	482	.090 x .120	14
	20S	GG-J-20S-SB	7 x 28	Glass	SS Braid over Glass	900	482	.090 x .127	15
	24	GG-J-24-SB	Solid	Glass	SS Braid over Glass	900	482	.085 x .117	11
	24S	GG-J-24S-SB	7 x 32	Glass	SS Braid over Glass	900	482	.080 x .110	11
Kapton Fused Polymide Tape	20	KK-J-20	Solid	Fused Polymide Tape	Fused Polymide Tape	500	260	.060 x .100	11
	20S	KK-J-20S	7 x 28	Fused Polymide Tape	Fused Polymide Tape	500	260	.060 x .105	11
	24	KK-J-24	Solid	Fused Polymide Tape	Fused Polymide Tape	500	260	.050 x .075	6
	24S	KK-J-24S	7 x 32	Fused Polymide Tape	Fused Polymide Tape	500	260	.050 x .085	6
	30	KK-J-30	Solid	Fused Polymide Tape	Fused Polymide Tape	500	260	.040 x .055	5
PFA and Glass	30	TG-J-30	Solid	PFA	Glass Braid	500	260	.034 x .047	2
	36	TG-J-36	Solid	PFA	Glass Braid	500	260	.028 x .038	2
	40	TG-J-40	Solid	PFA	Glass Braid	500	260	.026 x .035	2
Neoflon PFA (HighPerformance)	20	TT-J-20	Solid	PFA	PFA	500	260	.068 x .116	11
	20	TT-J-20S	7 x 28	PFA	PFA	500	260	.073 x .126	11
	22	TT-J-22S	7 x 30	PFA	PFA	500	260	.065 x .133	9
	24	TT-J-24	Solid	PFA	PFA	500	260	.056 x .092	6
	24	TT-J-24S	7 x 32	PFA	PFA	500	260	.063 x .102	6
	30	TT-J-30††	Solid	PFA	PFA	500	260	.024 x .040	2
	36	TT-J-36††	Solid	PFA	PFA	500	260	.019 x .030	2
	40	TT-J-40††	Solid	PFA	PFA	500	260	.017 x .026	2
PFA Polymer w/Twisted & Shielded Conductors	20	TT-J-20-TWSH	Solid	PFA Polymer	PFA Polymer and Shielding	500	260	.15	20
	20S	TT-J-20S-TWSH	7 x 28	PFA Polymer	PFA Polymer and Shielding	500	260	.15	20
	24	TT-J-24-TWSH	Solid	PFA Polymer	PFA Polymer and Shielding	500	260	.11	9
	24S	TT-J-24S-TWSH	7 x 32	PFA Polymer	PFA Polymer and Shielding	500	260	.12	9
Neoflon FEP	20	FF-J-20	Solid	FEP	FEP	392	200	.068 x .116	11
Neoflon FEP	24	FF-J-24	Solid	FEP	FEP	392	200	.056 x .092	7
FEP Polymer w/Twisted & Shielded Conductors	20	FF-J-20-TWSH	Solid	FEP Polymer	FEP Polymer and Shielding	392	200	.15	20
	20S	FF-J-20S-TWSH	7 x 28	FEP Polymer	FEP Polymer and Shielding	392	200	.15	20
	24	FF-J-24-TWSH	Solid	FEP Polymer	FEP Polymer and Shielding	392	200	.11	9
	24S	FF-J-24S-TWSH	7 x 32	FEP Polymer	FEP Polymer and Shielding	392	200	.12	9
TFE Tape Polymer	20	TFE-J-20	Solid	TFE Tape Polymer	Fused TFE Tape Polymer	500	260	.060 x .100	11
	20S	TFE-J-20S	7 x 28	TFE Tape Polymer	Fused TFE Tape Polymer	500	260	.060 x .105	11
	24	TFE-J-24	Solid	TFE Tape Polymer	Fused TFE Tape Polymer	500	260	.050 x .075	6
	24S	TFE-J-24S	7 x 32	TFE Tape Polymer	Fused TFE Tape Polymer	500	260	.050 x .085	6
Polyvinyl	24	PR-J-24	Solid	Polyvinyl	(Rip Cord)***	221	105	.050 x .086	5
Polyvinyl	24	PP-J-24S	7 x 32	Polyvinyl	Polyvinyl	221	105	.080 x .130	5

*Has color tracers on jacket and conductors, XC= Max Insul Density, XT=Reduced Insul Density, XL=Minimum Insul Density-Looser Woven
**Has color tracers on jacket and positive leg only
***Two insulated leads bonded together, but with no overwrap.
†Weight of spool and wire rounded up to the next highest lb. (does not include packing material).
††Overall color clear

HH for High Temp Glass (20 & 24 AWG Only)
GG for Glass
KK for Kapton Fused Polymide Tape (20 24 & 30 AWG Only)
TG for PFA and Glass (30 36 & 40 AWG Only)
TT for Neoflon PFA (High Performance)
FF for Neoflon FEP (20 & 24 AWG Only)
PP for Polyvinyl (24 Gauge Stranded Only)
PR for Polyvinyl Rip Cord (24 AWG Only)
XC for Ceramic (14 20 24 AWG Only)
XT for Ceramic (20 & 24 AWG Only)
XL for Ceramic (20 & 24 AWG Only)
XS for Silica (14 20 24 AWG Only)
TFE for TFE Tape Polymer (20 & 24 AWG Only)

(2) Gage select from:
14 for 14 AWG
20 for 20 AWG
20S for 20 AWG (Stranded)
24 for 24 AWG
24S for 24 AWG (Stranded)
28 for 28 AWG
30 for 30 AWG
36 for 36 AWG
40 for 40 AWG

(3) Additional Option select from:
Nothing(leave field blank) for None
-SB for SS Braid
-TWSH for Twisted and Shielded Conductors (Only available for TT or FF insulation 20 & 24 AWG Only)

(4) Special Limits of Error select from:
Nothing(leave field blank) for Standard
-SLE for Special Limits of Error

(5) Spool Length select from:
25 for 25 Feet
50 for 50 Feet
100 for 100 Feet
200 for 200 Feet
500 for 500 Feet
1000 for 1000 Feet
